Henan Jixiang Industrial Co., Ltd lenazheng@henanjixiang.com 86-371-60292098
Product Details
Place of Origin: Made in China
Brand Name: ZWM
Certification: CE, SGS, IOS,...
Model Number: 078
Payment & Shipping Terms
Minimum Order Quantity: 600SQM
Price: 3-18 USD/SQM
Packaging Details: Nude packing, palelt
Delivery Time: 15-25days
Payment Terms: T/T
Supply Ability: 20000sheet/day
Surface Coating: |
PVDF Coating |
Panel Thickness: |
4mm Thickness |
Aluminum Thickness: |
0.3mm*0.3mm |
Panel Width: |
1220mm, ,1250mm, 1500mm |
Certifacte: |
CE,IOS9001:2000 ,Rohs |
Application: |
Billboard， Advertisement ,cladding Decoration, Curtain Wall, |
Color: |
Ald- Yellow |
Core Materials: |
PE Core |
Warranty: |
15 Years |
Protection Film: |
Aludong Or Customied |
Core: |
Flexible Or Unbroken |
Surface Coating: |
PVDF Coating |
Panel Thickness: |
4mm Thickness |
Aluminum Thickness: |
0.3mm*0.3mm |
Panel Width: |
1220mm, ,1250mm, 1500mm |
Certifacte: |
CE,IOS9001:2000 ,Rohs |
Application: |
Billboard， Advertisement ,cladding Decoration, Curtain Wall, |
Color: |
Ald- Yellow |
Core Materials: |
PE Core |
Warranty: |
15 Years |
Protection Film: |
Aludong Or Customied |
Core: |
Flexible Or Unbroken |

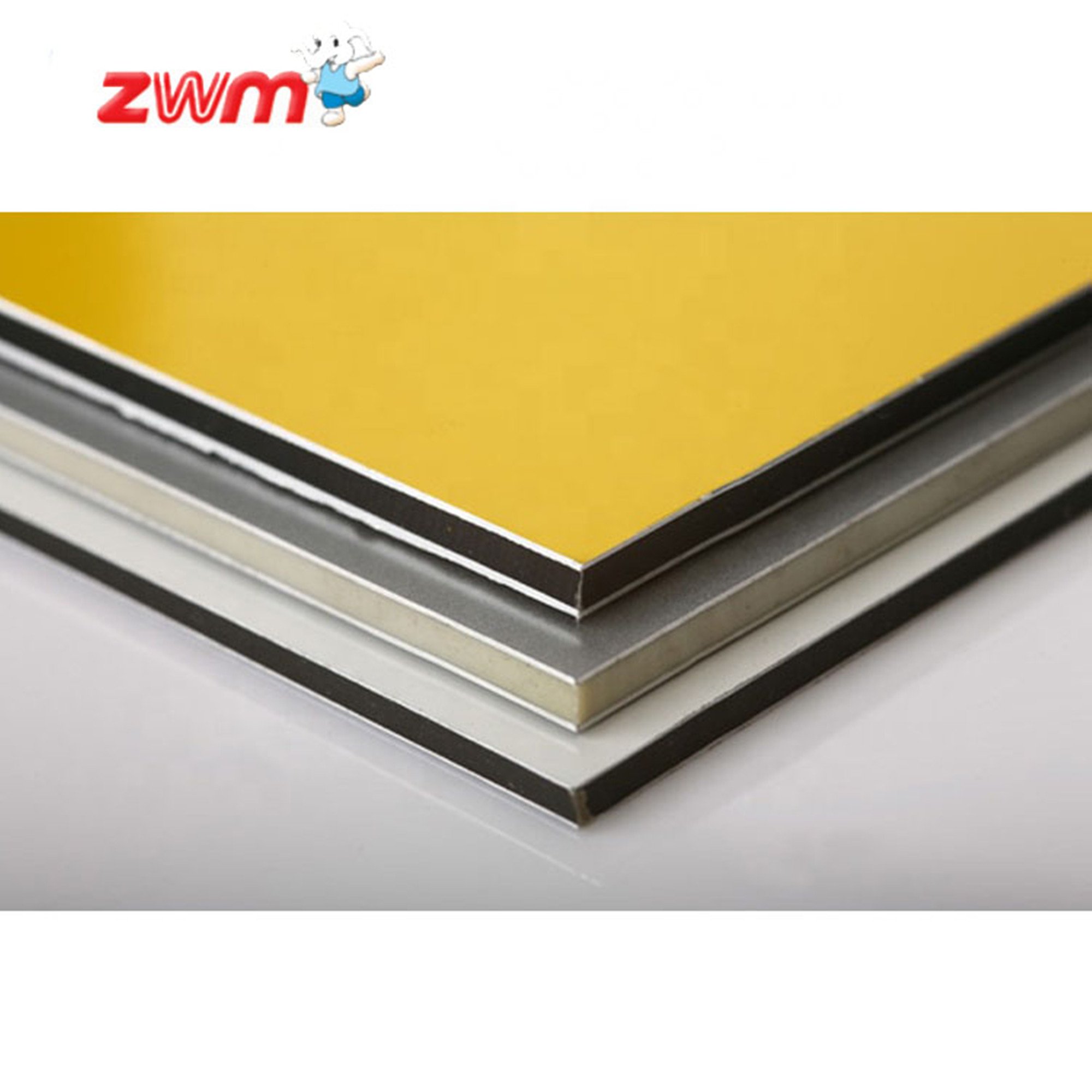

Aludong aluminum composite panel (ACP) are produced by continuously bonding two thin aluminum skin on either side of an extruded LDPE , fire-retardant thermoplastic core. The aluminum surfaces have been pre-treatment and coil-coated in a variety of paint finishes before lamination. Aludong aluminum composite panel has high impact resistance, good thermal, sound and electrical insulating property, excellent weather resistance, durability and fireproof performance which are widely applied to curtain wall system, exterior building cladding, roofing etc.
Product Display
Color Chart
Our Project
Specifications And Sizes
| Item | Standard | Opition |
| Width | 1220mm | 1000mm, 1500mm, 1000mm to 1750mm |
| Length | 2440mm | 350mm,5800mm, or any other length than can be put in a 20 GP container |
| Panel Thickness | 3mm,4mm | 1.5mm to 8 mm |
| Aluminum Thickness | 0.30mm | 0.03mm to 0.6mm |
| Surface Finish | Brused, Maple, Mirror, PE, PVDF, PEVE, NANO PVDF coating | |
| Color | Matte,Glossy color, Metaliic, Brushed, Mirror | |
| Weight | 3mm, 8kg-13.3 KGS per piece, 4mm, 12.7-27.89 KGS per piece | |
| Gurantee | PE can keep 5-8 years/ PVDF can keep 10-15 years | |
| PE Core Materials | Non-toxicand Low density Polyethylene | |
| Payment terms | T/T | |
| More services | Samples Free, OEM, | |
| Features | Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character | |
2. Our Factory
| 1. | 24 advanced production line |
| 2. | 6 coating lines |
| 3. | morn than 353 employees |
| 4. | Founded in 1999, rich production experiences in aluminum composite panel and well known brand in the w |
Aluminum coil coating lines ACP/ACM composite lines
Certificate
4. Why Choose US?
1. We are the factory and manufactures, the price and quanlity will make you company more competitive in this challenging market. 24 production lines and 5 coating lines support quick delivery.
2. We have Great feedback by customer. Once cooperate, will cooperate at least 5 years, our Aludong brand is very popular on Asian, North Aferica, Europin, North America and South America.
3. Quantity strictly with international standards and passed ISO, SGS, CE, RoHs, certicate.
4. Experience: Founded in 1999, rich production experiences in aluminum composite panel and well-known brand in China Market.
5.Superior ability of OEM customes
6. Muliple specs and colors for your choices, and customized color acceptable.
6.FAQ
1).what is the minimum order quality?
200 pieces for aluminum composite panel for one color.
2).How long can I get the quote?
The quotation can be provided not longer than 24 hours on condition that we know all condition.
3).Can I get a sample?
Yes, we offer free samples. Deliver cost is to be paid by Clients.
4).Can I buy installation accessories. If you want to know more about the installation of aluminum composite panel , pls click the website henan-jixiang.en.made-in-china.com.
5).Why can I trust you and place order with us?
1. We are manufacture and supplier of aluminum composite panel in China with over 17 years.
2.We have 24 ACP production lines and 6 large coating lines. Keep fast deliveries ,our ouput is around 35000 pieces per day with size of 2440*1220mm.
3.Best price can be offered as we have own alu coil factory.
4.Big group organization with 12 subsidiaries which means we have enough cash flow to offer your best payment terms.
