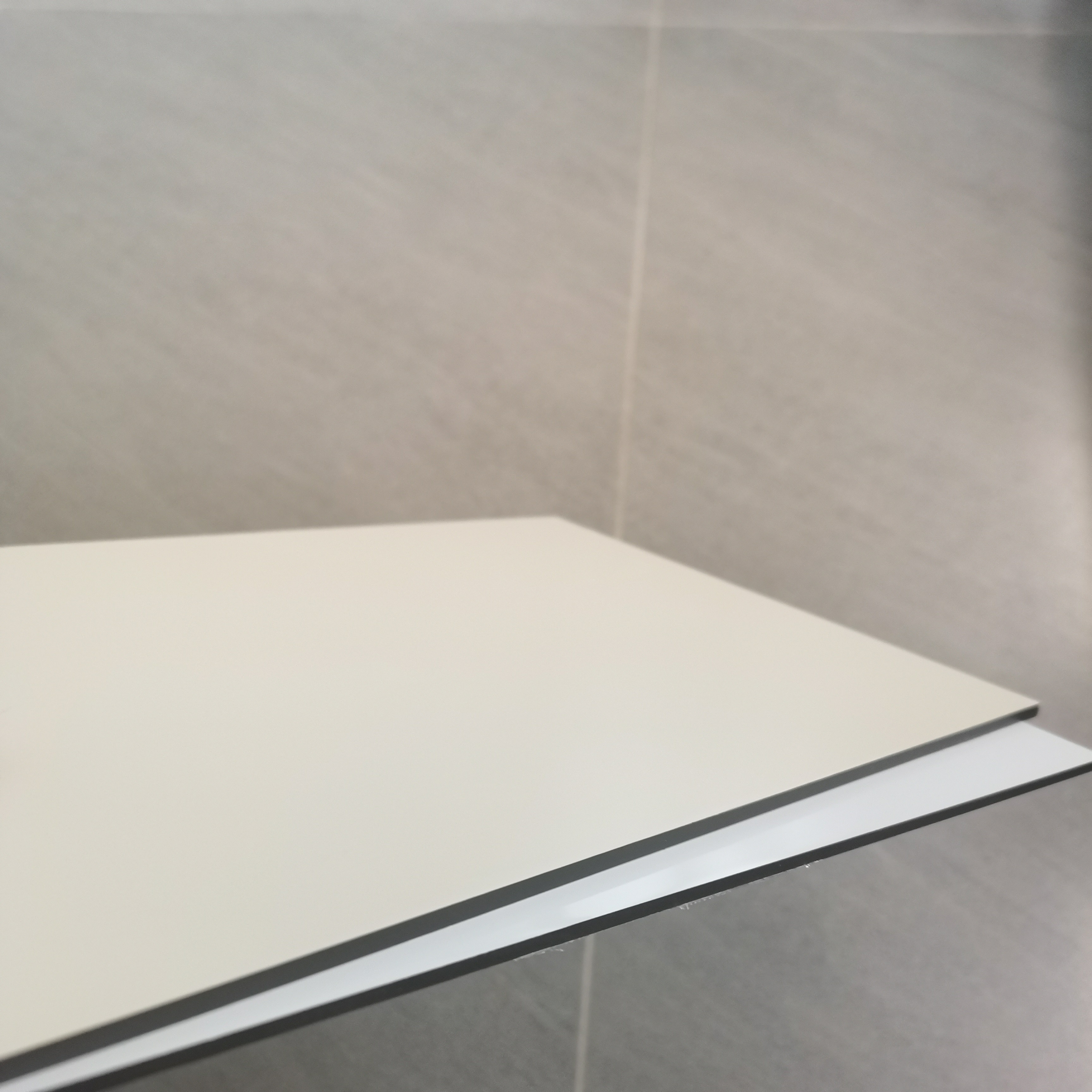

Polyethylene Aluminum Composite Panel For Large Widths 1220mm-1570mm
Contact Person : admin
Phone Number : 13699225355
| Minimum Order Quantity : | 600SQM | Price : | 3-18 USD/SQM |
|---|---|---|---|
| Packaging Details : | Nude packing, palelt | Delivery Time : | 15-25days |
| Payment Terms : | T/T | Supply Ability : | 20000sheet/day |
| Place of Origin: | Made in China | Brand Name: | ZWM |
|---|---|---|---|
| Certification: | CE, SGS, IOS,... | Model Number: | 077 |
|
Detail Information |
|||
| Surface Coating: | PE Coating | Panel Thickness: | 3mm Thickness |
|---|---|---|---|
| Aluminum Thickness: | 0.21mm*0.21mm | Panel Width: | 1220mm, 1240mm, |
| Certifacte: | CE,IOS9001:2000 ,Rohs | Application: | Billboard， Advertisement ,cladding Decoration, Curtain Wall, |
| Color: | Ald- White | Core Materials: | PE Core |
| Warranty: | 10 Years | Protection Film: | Aludong Or Customied |
| Core: | Flexible Or Unbroken | ||
| High Light: | 3*0.21*0.21 aluminum composite panel,aluminum Digital Printing Signage composite panel,Aluminum Composite PE Panel 3mm |
||
Product Description
Aludong ACP is widely used for external cladding, building facades, thermal insulation, and signage.
Its applications also include internal cladding, such as but not limited to wall partitions, false ceilings, and signage.
Aluminum-plastic composite panel
The product is easy to process, simple to install, stable in internal stress, good in rigidity and has super strong adhesion. After 8 hours of boiling water test, the adhesive layer has not been damaged. The modified flame-retardant polyethylene core material is used, which is non-toxic, scientific, environmentally friendly, and pollution-free. Both sides are covered with non-combustible aluminum layers. The fire resistance test exceeds the B1 level index requirements, which solves the fire prevention problem of metal-plastic composite building materials.
Product Display
Color Chart
Our Project
Specifications And Sizes
| Item | Standard | Opition |
| Width | 1220mm | 1000mm, 1500mm, 1000mm to 1750mm |
| Length | 2440mm | 350mm,5800mm, or any other length than can be put in a 20 GP container |
| Panel Thickness | 3mm,4mm | 1.5mm to 8 mm |
| Aluminum Thickness | 0.30mm | 0.03mm to 0.6mm |
| Surface Finish | Brused, Maple, Mirror, PE, PVDF, PEVE, NANO PVDF coating | |
| Color | Matte,Glossy color, Metaliic, Brushed, Mirror | |
| Weight | 3mm, 8kg-13.3 KGS per piece, 4mm, 12.7-27.89 KGS per piece | |
| Gurantee | PE can keep 5-8 years/ PVDF can keep 10-15 years | |
| PE Core Materials | Non-toxicand Low density Polyethylene | |
| Payment terms | T/T | |
| More services | Samples Free, OEM, | |
| Features | Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character | |
2. Our Factory
| 1. | 24 advanced production line |
| 2. | 6 coating lines |
| 3. | morn than 353 employees |
| 4. | Founded in 1999, rich production experiences in aluminum composite panel and well known brand in the w |
Aluminum coil coating lines ACP/ACM composite lines
Certificate
4. Why Choose US?
1. We are the factory and manufactures, the price and quanlity will make you company more competitive in this challenging market. 24 production lines and 5 coating lines support quick delivery.
2. We have Great feedback by customer. Once cooperate, will cooperate at least 5 years, our Aludong brand is very popular on Asian, North Aferica, Europin, North America and South America.
3. Quantity strictly with international standards and passed ISO, SGS, CE, RoHs, certicate.
4. Experience: Founded in 1999, rich production experiences in aluminum composite panel and well-known brand in China Market.
5.Superior ability of OEM customes
6. Muliple specs and colors for your choices, and customized color acceptable.
6.FAQ
1).what is the minimum order quality?
200 pieces for aluminum composite panel for one color.
2).How long can I get the quote?
The quotation can be provided not longer than 24 hours on condition that we know all condition.
3).Can I get a sample?
Yes, we offer free samples. Deliver cost is to be paid by Clients.
4).Can I buy installation accessories. If you want to know more about the installation of aluminum composite panel , pls click the website henan-jixiang.en.made-in-china.com.
5).Why can I trust you and place order with us?
1. We are manufacture and supplier of aluminum composite panel in China with over 17 years.
2.We have 24 ACP production lines and 6 large coating lines. Keep fast deliveries ,our ouput is around 35000 pieces per day with size of 2440*1220mm.
3.Best price can be offered as we have own alu coil factory.
4.Big group organization with 12 subsidiaries which means we have enough cash flow to offer your best payment terms.
