Cladding Aluminum Composite Panel 5mm For Sinage Reference / Curtainwall Aludong
Cladding Aluminum Composite Panel 5mm For Sinage Reference / Curtainwall Aludong Cladding Aluminum Composite Panel 5mm For Sinage Reference / Curtainwall Aludong Cladding Aluminum Composite Panel 5mm For Sinage Reference / Curtainwall Aludong Cladding Aluminum Composite Panel 5mm For Sinage Reference / Curtainwall Aludong Cladding Aluminum Composite Panel 5mm For Sinage Reference / Curtainwall Aludong
Contact Now

Cladding Aluminum Composite Panel 5mm For Sinage Reference / Curtainwall Aludong

Minimum Order Quantity : 600SQM Price : 3-18 USD/SQM
Packaging Details : wooden case Delivery Time : 15-20days
Payment Terms : L/C, T/T, D/A, D/P, Western Union Supply Ability : 20 million / year
Place of Origin: China Brand Name: Aludong/ZWM
Model Number: Aluminum Composite Panel For Sinage Reference-Aludong

Detail Information
Certification: CE/SGS/ISO9001,SGS,Fireproof,ISO9001 Surface Treatment: PVDF Coated,PE Coated,Brushed,Anodized,Printing
Usage: Outdoor,Indoor,uv Print/advertisement/outdoor/indoor,curtain Wall And Exterior Decoration,exterior Function: Mould-Proof,Anti-Static,Fireproof,Antibacterial,PE And PVDF Coated ACP Panels
Color: Customer's Requirements,Silver,Customs' Color Is Available,More Than 30 Kinds For Choose,Black Panel Thickness: 2/3/4/5/6mm,4mm,6mm,3mm,5mm
Size: 1220*2440mm,custom,1220*2440*4.00/0.25mm,1220/1250/1500/1550mm*length,customize Coating: PE PVDF,NANO,Masaic,PE Or PVDF On 1 Side Or 2 Side,PVDF Coating
Application: Decorative Material,Building Exterior Wall,wall Cladding For Exterior,ROOFING SHEET,indoor Aluminum Thickness: 0.50mm,0.3x0.3mm,0.04mm-0.5mm,0.21mm,0.3mm
Product Name: Aluminnum Composite Panel,PVDF/PE Coated Alucobond Price/Exterior Wall Aluminum Composite Panels,4mm 5mm PVDF Paint Aluminum Composite Panels For Peru Market,pvdf Acp 4mm Aluminium Composite Panel Price Length: 3050mm,3050mm/4050mm/2440mm,recommend 2440mm,customized,6000mm In Maximum
Width: 1500mm,1220mm,25-1600mm,1220/1250/1500mm,1220mm/1250mm/1500mm/1550mm Thickness: 4mm,1.0-4.0mm,1.5mm-6.0mm,6mm,2mm
Standard Size: 1220*2440mm,1220mm*2440mm*3mm/4mm/5mm,1220mm X 2440mm X 4mm Protective Film: Alumetal Or Customized,PE Plastic Tape,PE Film PVDF,to Protect The Panel Surface From Scratch Or Damage,1 Side Or 2 Sides
Core: Core Broken Or Not,good Core,unbroken PE,Half Unbreakable,LDPE / Fireproof / A2 Non-combustible Name: Aluminum Composite Board/Pvdf Aluminium Composite Panel
Material: Aluminum Alloy,LDPE(recycled-plastic) No-toxic Or Fire-rated
High Light:

Aluminum Composite Panel For Sinage Reference

,

Cladding Aluminum Composite Panel 5mm

,

Cladding Aluminum Composite Curtainwall Panel

Product Description

Aluminum Composite Panel For Sinage Reference-Aludong

Minimum Order Quantity : 600SQM Price : Negotiatable
Packaging Details : nude packing or wooden pallets Delivery Time : 10-15 days
Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash Supply Ability : 1000000 per month
Place of Origin: China Brand Name: ALUDONG
Certification: CE, ASTM, ISO, Green Leaf Model Number: 1100
Detail Information
Transport Package: Wood Pallet; Wood Box; In Nude Specification: 1220mm*2440mm; 1250mm*3050mm
Min. Order: 600 Square Meters Panel Thickness: 4mm
Aluminum Thickness: 0.3mm Function: Fireproofing, Anti-static, Anti-Bacterial, Mould-proof
Usage: External Wall, Curtain Wall, Interior, Advertising

Product Description



Aluminum composite panel is made of aluminum alloy and plastic material to feature great hardness, light weight and smooth service, provided with wide range of sizes, shapes, colors, and styles to offer broader options for construction design, in a bid to better meet the requirements of contemporary construction on lightweight, elegant decoration and high hardness

Aluminum composite panel is widely used in all kinds of architectural decorations for its excellent properties, such as the, cladding, shops front, ceiling, counters, furniture, road signs, billboards, kiosks, elevators, stores.

Aluminum Composite Panel for Sinage Reference-Aludong 0​

Product range:

Surface Coating Polyester Coating
Aluminum Alloy AA1100, AA3003
Aluminum Skin 0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.30mm
Panel Thickness 2mm,3mm,4mm,5mm
Core Material Non-toxic low density polyethylene
Panel Width 1000mm,1220mm,1250mm,1500,
Panel Length 2440mm,3050mm,4000mm,5000mm
Back Coat PE coating, Primer Coating ,Mill finish



Products tolerance:

Panel Width ±2mm
Panel Length ±3mm
Panel Thickness ±0.2mm
Panel Diagonal ≤ 5mm
Aluminum layer thickness ±0.02mm



Technical data:

Description Test standard Polyester
Coating Thickness (μm) Polyester paint >=16μm 16μm to 18μm
Coating flexibility (T-bend) Polyester paint ≤ 3T ≤ 3T
Color different ΔE<=2.0 (follow color sample) ΔE<=2.0
Pencil hardness >=HB >=2H
Chemical resistance 2%HCI or 2%NaOH test in 24 hours -No change No change
Coating adhesion >=1grade for 10810mm2 gradding test 1grade
Resist solvent 100 times without change No change
Boiling water resistance 2 hours without change No change
Peeling strength/stripping strength

Average >=5N/mm of 180oc peel off

for panel with 0.21mm alu.skin

 5N/mm
Impact test for paint 20KG.cm impact-paint no split for panel No split
Abrasion resistance (L/Mil) NIL NIL
Temperature resistance

-40ºC to +80ºC temperature without

change of color difference

and paint peel off, peeling

strength average dropprate<=10%

 Change of glossy only, no paint
Peel off
Coefficient of linear Thermal Expansion 100ºC temperature difference 2.4mm/n
Detergent resistance (3%) ASTM D2248 No change
Humidity Resistance (3000hrs,100%RH,100°F) ASTM D2247 No change
Salt spray resistance (3000hrs,5% salt) ASTM B117 No change
Resistance to Staining

600h radiate in 800W/M2 in humidity condition

,glossiness deviation less grade 2,color difference <=4.0

 No change




ACP USAGE:
1.Building interior decoration
2.Ceilings
3.Building Sides Panels
4.Curtain walls
5.Shopfronts&Soproporta
6.Signage
7.Digital Printing



Company information :
HENAN JIXIANG INDUSTRY CO., LTD located in Zhengzhou city, henan province. It covers land of 600mu and construction area a 130000 squre meters, we are a large-scale joint-stock enterprise specialized in manufacturing aluminum composite panels, aluminum panel,which is provided with abundant manufacturing experience,high -tech strength, sophisticated production equipments and rigorous quality testing method.
with a total investment of RMB 150 million Yuan, we have 24 advanced production lines of aluminum composite panel, and 6 large coating lines,and 4 protection film production lines .JIXIANG mainly produces PE aluminum composite panels, granite sheets and other decorating materials, covering more than aone hundred specifications and colors. our market:North American; Asia; Oceania; Africa and etc.
JIXIANG will commit itself to broadening its builing and decorating materials , striving to make it the largest production base of aluminum composits panel and aluminum panel in china.



Product Show

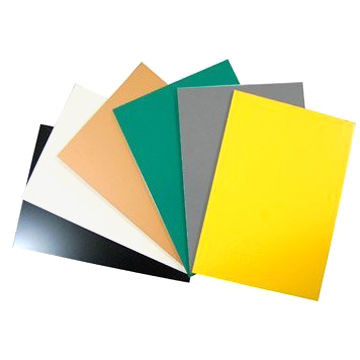

Cladding Aluminum Composite Panel 5mm For Sinage Reference / Curtainwall Aludong 1
