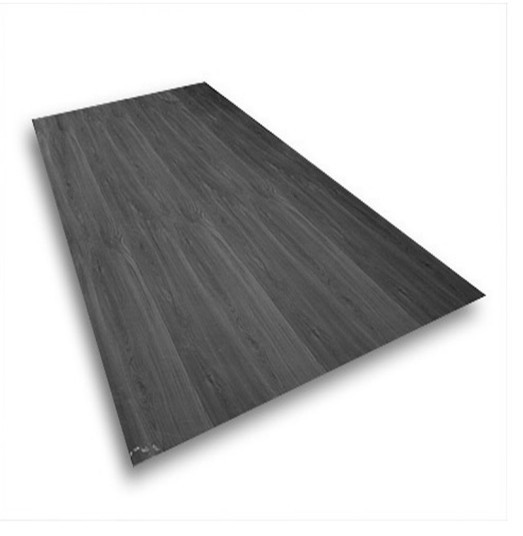

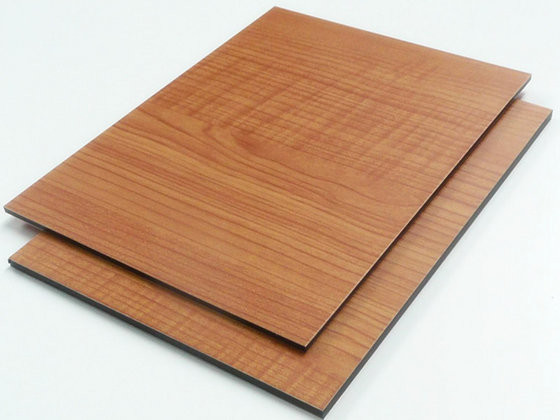

Rust Resistant Wooden Aluminum Composite Panel Aludong Pe Ald - G802 Weather

Product Description

Product Description

Aluminum Composite Panel Specs:

Panel Thickness : 2mm-6mm

Alu Thickness : 0.03mm-0.5mm

Coating : PE/PVDF/NANO/FEVE

Colors : Matt,Metallic,Mirror,Brushed,Sparkling,Wooden,Granite/ Mill finish

Length : 1000mm-6000mm

Width : 900mm-1600mm

packaging : Wooden case/Pallet/Bulk

Lead Time : 8-15 days

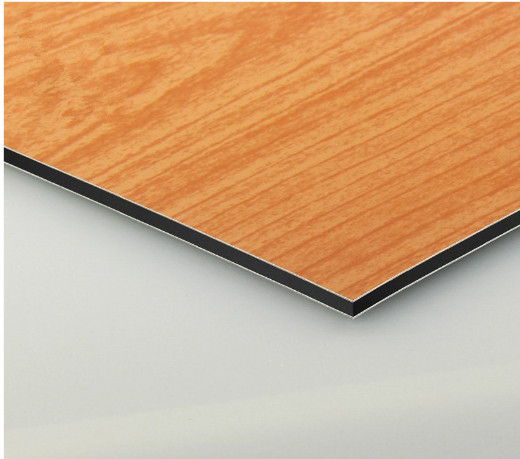

Aluminum composite panel structure:

Aluminum composite panel,or ACP/ACM is made of two layers of aluminium coils sandwiching a high quality LLDPE core,the prepainted aluminum coils,which have been degreased and removed of its impure surface matter and then through Henkel anodization we generate a fine anodized layer on the coils to make it smoother and increase coating and painting fastness. the aluminium coils and the core are heat bonded together before they cool off boasting a great peel strength.

LLDPE core: we have different standards of PE core,including breakable and non-brekable one. the non-breakable one can't be snapped from either or both sides. we also have white core subject to your requirement.

Aluminum Coil: we have our own aluminum coil factory and we handle different aluminum grades as per your request. the coils are coated with a fine anodized aluminum layer to make sure the painting adhesion is superior.

Polymer film: we use imported polymer film when laminating to ensure maximum panel fastness and that they dont peel off easily.

Protective film: we apply a protective film on finished ACP to give extra protection. we have transparent film,branded films etc you can dictate it.

Aluminum composite panel usage:

* Interior cladding,ceiling,modular kitchen cabinet,countertop

* Exterior cladding,canopy,curtain wall,siding,roofing,building elevation

* Signage,sopraporta,fascia,shop fronts,billboard,printing ETC.

How we stand out among peers:

* Scale: we have 24 composite lines and 6 coating lines,making us the largest manufacturer in China.

* Quality: our rigid quality control passes CE,SGS,ROHS,ISO etc.

* Experience: founded in 1999,we have rich production experience and endeavers to make Jixiang a well known China brands.

* Our scale economy and rich experience help ensure on-time delivery and warranty.

* As a group colossal,our network synergy guarantees optimal cost advantage.

* We have much experience with OEM/ODM.

* We have a wide range of specs and colors at your choice,including tailor made projects.

* We are attentive,assiduous and responsible,WE VALUE EACH & EVERY CUSTOMER for long term cooperation.

Product use site

Product Description
PE/PVDF ACP Constitution Structure

Company information :
HENAN JIXIANG INDUSTRY CO., LTD located in Zhengzhou city, henan province. It covers land of 600mu and construction area a 130000 squre meters, we are a large-scale joint-stock enterprise specialized in manufacturing aluminum composite panels, aluminum panel,which is provided with abundant manufacturing experience,high -tech strength, sophisticated production equipments and rigorous quality testing method.
with a total investment of RMB 150 million Yuan, we have 24 advanced production lines of aluminum composite panel, and 6 large coating lines,and 4 protection film production lines .JIXIANG mainly produces PE aluminum composite panels, granite sheets and other decorating materials, covering more than aone hundred specifications and colors. our market:North American; Asia; Oceania; Africa and etc.
JIXIANG will commit itself to broadening its builing and decorating materials , striving to make it the largest production base of aluminum composits panel and aluminum panel in china.
