2440mm PVDF Aluminum Composite Sandwich Panel Interior Wall Cladding
Contact Person : admin
Phone Number : 13699225355
|Minimum Order Quantity :||200 SHEETS||Packaging Details :||WOODEN PACKAGE|
|Delivery Time :||15-25 DAYS||Payment Terms :||L/C, T/T|
|Supply Ability :||600000 SHEETS PER MONTH|
|Place of Origin:||CHINA||Certification:||CE, RoHs, ISO, SGS|
|Surface Treatment:||PVDF Coated||Usage:||Outdoor,curtain Wall And Exterior Decoration|
|Function:||Fireproof,Antibacterial,PE And PVDF Coated ACP Panels||Color:||Customer's Requirements,Silver|
|Panel Thickness:||4mm,6mm,5mm||Coating:||NANO,PVDF Coating|
|Application:||Building Exterior Wall,ROOFING SHEET||Aluminum Thickness:||0.04mm-0.5mm|
|Protective Film:||PE Plastic Tape||Material:||Aluminum Alloy,LDPE(recycled-plastic) No-toxic Or Fire-rated|
Wooden Maple PVDF Aluminum Composite Panel,
Outdoor PVDF Aluminum Composite Panel,
3050mm Length PVDF Aluminum Composite Panel
4mm PVDF coating Aluminum Composite Panel Silver and Wooden for outdoor building facade cladding

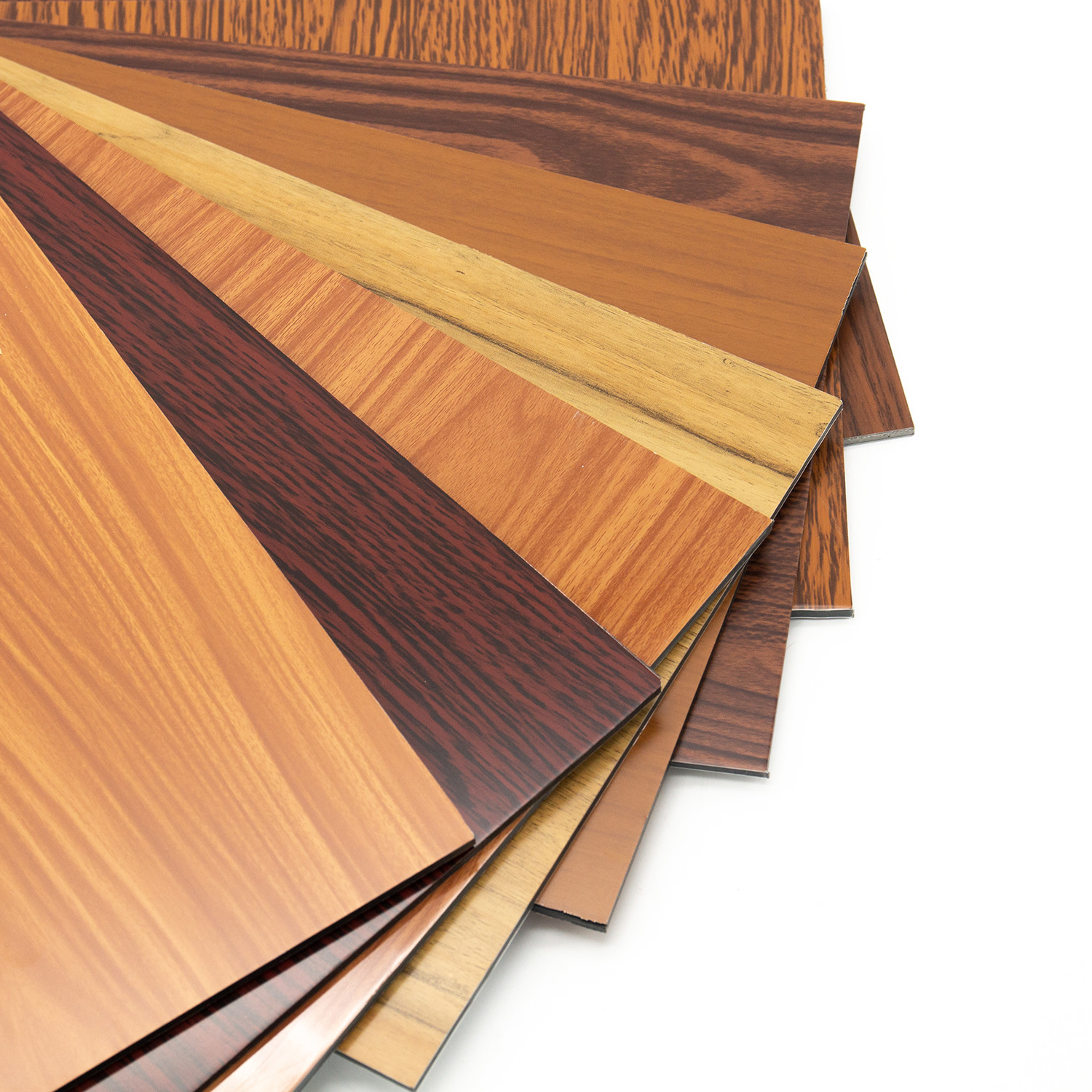

Wooden Maple Aluminum Composite Panel ACM For Building decoration indoor outdoor
|Width||1220mm||1000mm, 1500mm, or range from1000mm-1570mm|
|Length||2440mm||3050mm, 5000mm, 5800mm, or any
other length that can be put into a 20GP
|Panel Thickness||3mm, 4mm||2mm, 5mm, 8mm , or range from 1.5mm-8mm|
|0.5mm,0.4mm, 0.3mm, 0.21mm, 0.15mm, or range from 0.03mm-0.60mm|
|Surface Finish||Brushed, Maple, Mirror , PE, PVDF, FEVE Coating|
|Color||Metallic Color, Gloss Color, Pearl, Mirror, Maple,Brushed, etc|
|Weight||3-4.5kg/Square meter, based on 3mm panel thickness
4-4.5kg/Square meter, based on 4mm panel thickness
|Application||Interior / Exterior / signage /industries application|
|Certification||ISO 9001:2000, ISO9001:2008, SGS ,CE,Rohs, Fireproof Certification|
|Leading Time||8-15 days after receive your orderr|
|Packing||Wooden Pallet or Wooden case or Nude Packing|
Structural Section of aluminum composite panel
Aluminum Composite Panel is compounded by multilayer materials, the surface and back covered by high strength aluminum alloy sheet, the core material is non-toxic low density polyethylene(PE) , on the surface of aluminum composite panel covered by protective film.
Characteristic of ACP
ALUDONG adopt super quality aluminum , high strength , greatly enhance the panel’s strength to ensure the perfect effect in wind load resistance, shakeproof.Superior weather-resistance and ultraviolet (UV) resistance, acid-resistance and alkli-resistance.
No pollution to the enviroment , it is green building decorative material, No changes in surface coating .
ALUDONG aluminum composite panel are composite of aluminum and plastic ,which is lighter than other decorating material.
The non inflammable external aluminum sheets offer protection to polyethylene core material, and cut off heat conduction in the initial stages of combustion, with flame resistance up to international standard.
ALUDONG with the use of quality coating , aluminum composite panels are dispensed with longtime maintenance; because it is self-cleaning, they can be cleaned by neutral cleaning agent and clean water, and come out to be fairly new after cleaned.
If requested by customer, aluminum -plastic panels can be made to different colors and shapes to meet the original design of architects, thus bring perfect decorating effect.
ALUDONG fluorocarbon coated aluminum composite panels are featured by high durability ,good resistance against weather, high temperature,
wear and pollution.
ACP Coating Features
The gloss for solid and for metallic colors is in the range of 30%-40% according to Gardner Scale which is most suitable for architectdner applications. For special effect colors, the gloss is in the range of 70%-80% according to Gardner Scale. Due to their high gloss, panels coated in special effect colors need special care in the design and during fabrication and installation.
Application of Aluminum compsite panel
It can be widely used
1. Curtain wall,
2. Internal and external wall,
9. Advertise fascia,
10. Showing and display platform.
