Antibacterial Wooden Aluminum Composite Panel ACM For Building Cladding

Product Description

4mm PVDF coating Aluminum Composite Panel Silver and Wooden for outdoor building facade cladding

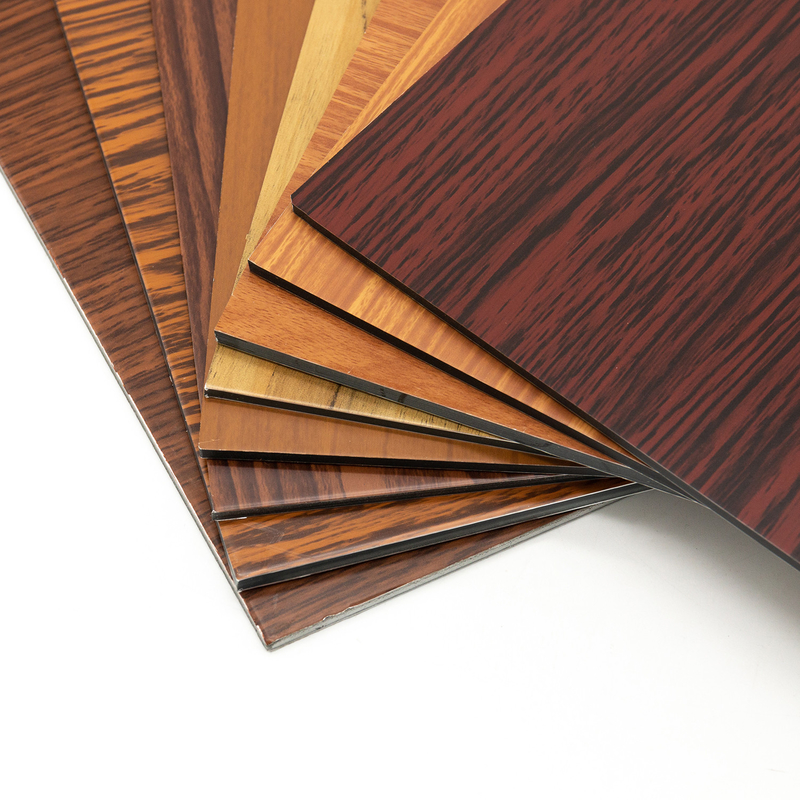

Wooden Aluminum Composite Panel ACM For Building Cladding

Item	Standard	Options
Width	1220mm	1000mm, 1500mm, or range from1000mm-1570mm
Length	2440mm	3050mm, 5000mm, 5800mm, or any other length that can be put into a 20GP container
Panel Thickness	3mm, 4mm	2mm, 5mm, 8mm , or range from 1.5mm-8mm
Aluminium Thickness (mm)	0.5mm,0.4mm, 0.3mm, 0.21mm, 0.15mm, or range from 0.03mm-0.60mm
Surface Finish	Brushed, Maple, Mirror , PE, PVDF, FEVE Coating
Color	Metallic Color, Gloss Color, Pearl, Mirror, Maple,Brushed, etc
Weight	3-4.5kg/Square meter, based on 3mm panel thickness 4-4.5kg/Square meter, based on 4mm panel thickness
Application	Interior / Exterior / signage /industries application
Certification	ISO 9001:2000, ISO9001:2008, SGS ,CE,Rohs, Fireproof Certification
Leading Time	8-15 days after receive your orderr
Packing	Wooden Pallet or Wooden case or Nude Packing

















































Structural Section of aluminum composite panel

Aluminum Composite Panel is compounded by multilayer materials, the surface and back covered by high strength aluminum alloy sheet, the core material is non-toxic low density polyethylene(PE) , on the surface of aluminum composite panel covered by protective film.



Characteristic of ACP

• High Strength

ALUDONG adopt super quality aluminum , high strength , greatly enhance the panel’s strength to ensure the perfect effect in wind load resistance, shakeproof.Superior weather-resistance and ultraviolet (UV) resistance, acid-resistance and alkli-resistance.

• Environment-friendly :

No pollution to the enviroment , it is green building decorative material, No changes in surface coating .

• Light weight

ALUDONG aluminum composite panel are composite of aluminum and plastic ,which is lighter than other decorating material.

• Non inflammable

The non inflammable external aluminum sheets offer protection to polyethylene core material, and cut off heat conduction in the initial stages of combustion, with flame resistance up to international standard.

• Economy

ALUDONG with the use of quality coating , aluminum composite panels are dispensed with longtime maintenance; because it is self-cleaning, they can be cleaned by neutral cleaning agent and clean water, and come out to be fairly new after cleaned.

• Design performance

If requested by customer, aluminum -plastic panels can be made to different colors and shapes to meet the original design of architects, thus bring perfect decorating effect.

• Durability

ALUDONG fluorocarbon coated aluminum composite panels are featured by high durability ,good resistance against weather, high temperature,

wear and pollution.







ACP Coating Features



• Polyester coating
• PE coating has good adhesion to the material. The color coated steel plate is easy to process, cheap, and has many products, and the choice of color and luster is great. In the general environment directly exposed, the corrosion period can be as long as 7 to 8 years.



• Lacquering
• ALUDONG surfaces the coating is high-quality lacquering systems , which own good chemical causticity resistance, and abrasion resistance and so on. For externel wall decoration ,use PVDF Coating and FEVE Coating is better choice, because the coating systems have excellent surface durability .which can keep 10-15 years.



• Nano-coating
• ALUDONG Nano coating is a special clear lacquering system which has excellent self-cleaning characteristics, the total dry film thickness shall be 35 micron minimum consisting of a conversion coating ,an inhibititive primer, lumiflon-based fluorocarbon and clear coating.



• Chameleon colors coating
• With pearl talc in PVDF paint (70% PVDF), the pigment type and viewing angle distinguish it with other coating .The different wave lengths of light reflected ,refracted and diffracted to the audience makes an ever-changing color gradient with iridescent highlights.



• Nacreous coating
• Nacreous coating is three-coat three-bake system . The thickness is 35 micron minimum consisting of a conversion coating , an inhibitive primer, lumiflon-based fluorocarbon coating and nacreous coating. The surface glossiness is around 90 degree. It is as excellent choice for the places which highly demand the surface glossiness.



• Variety of Colors
• From a wide range of standard colors, customers can select both metallic colors and solid colors. tailor-made colors are available on request.

The gloss for solid and for metallic colors is in the range of 30%-40% according to Gardner Scale which is most suitable for architectdner applications. For special effect colors, the gloss is in the range of 70%-80% according to Gardner Scale. Due to their high gloss, panels coated in special effect colors need special care in the design and during fabrication and installation.



Application of Aluminum compsite panel



It can be widely used

1. Curtain wall,

2. Internal and external wall,

3. Ceiling,

4. Eaves,

5. Balcony,

6. Gallery,

7. Exhibitions,

8. Partitions,

9. Advertise fascia,

10. Showing and display platform.
