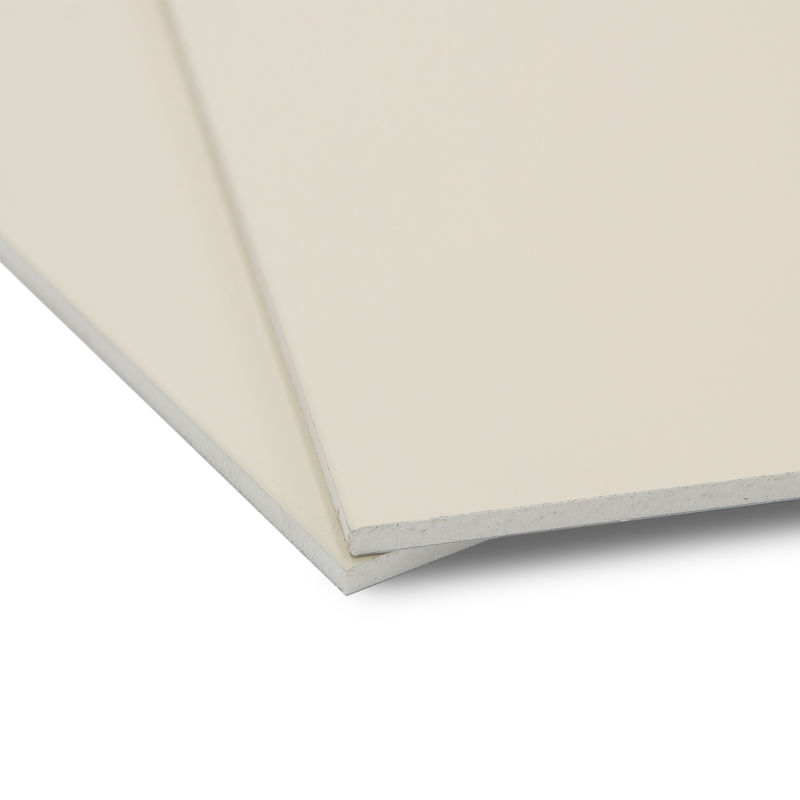

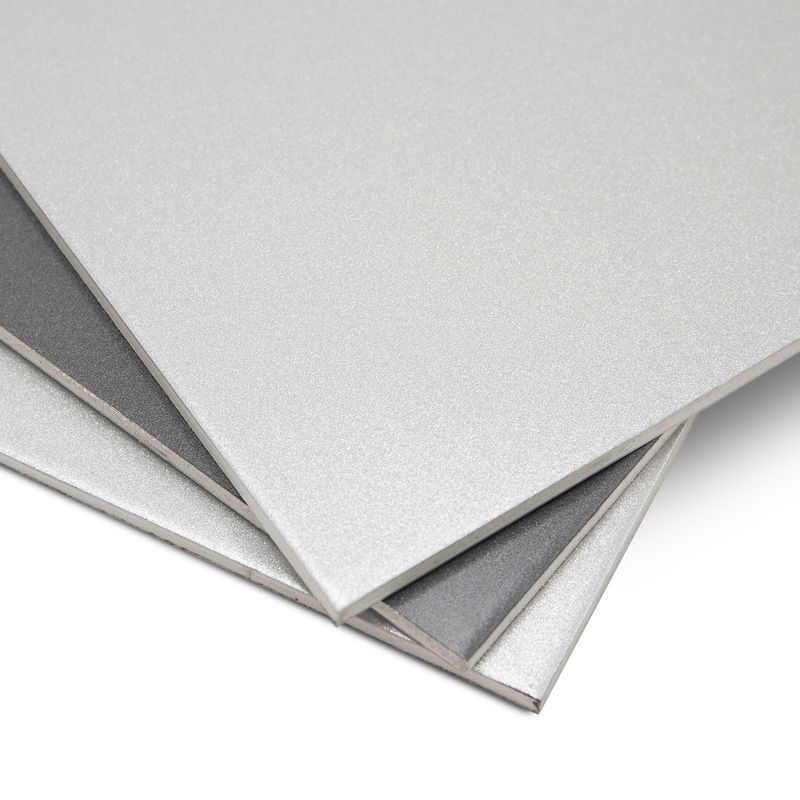

4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel

4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel
4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel 4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel 4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel 4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel

4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel

Product Details:
Place of Origin: CHINA
Brand Name: ALUDONG
Certification: CE，SGS，ISO
Model Number: ALD
Payment & Shipping Terms:
Minimum Order Quantity: 600 SQM
Price: 9-15USD
Packaging Details: Nude Packing or Wooden Pallets
Delivery Time: 10-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Sheets Per Month
Contact Now

Detail Information
Surface Treatment: PVDF Coated Usage: Fireproof，Fire-Retartant Non-Combustible
Function: Mould-Proof,Anti-Static,PE And PVDF Coated ACP Panels Color: Customer's Requirements,Customs' Color Is Available
Panel Thickness: 2/3/4/5/6mm Size: 1220*2440mm
Coating: PE PVDF,NANO,PVDF Coating Application: Decorative Material,Building Exterior Wall,wall Cladding For Exterior
Aluminum Thickness: 0.21-0.5mm Product Name: Aluminnum Composite Panel,PVDF/PE Coated Alucobond Price/Exterior Wall Aluminum Composite Panels,pvdf Acp 4mm Aluminium Composite Panel Price
Length: Customized,6000mm In Maximum Width: 1220/1250/1500/1550mm
Thickness: 4mm Standard Size: 1220*2440mm
Certification: CE/SGS/ISO9001,SGS,Fireproof,ISO9001 Protective Film: 1 Side Or 2 Sides
Core: Fireproof B1 / A2 Non-combustible Name: Aluminum Composite Board/Pvdf Aluminium Composite Panel

Product Description









Aludong Product Description:



  • Fire-Retartant Grade Aluminum composite panel ( FR ACP) is made of aluminum alloy and B1 /A2 non-combustible plastic material to feature great hardness, fireproof and smooth service, provided with wide range of sizes, shapes, colors and styles to offer broader options for construction design, in a bid to better meet the requirements of contemporary construction on safe and elegant decoration and high hardness.
  • Fire-Retartant Grade Aluminum composite panel is widely used in all kinds of architectural decorations for its excellent Fireproof properties, such as the, cladding, shops front, ceiling, counters, furniture, road signs, billboards, kiosks, elevators, stores
  • In developed country, it is also widely used in bus, train, sound insulation material of planes and ships.





Aludong Product Image:





4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel 0



  • Product Introduction:
    • Standard size: 1220*2440mm
    • Width:  1000-1550mm
    • Length: 2000-6000mm
    • Panel thickness:  3, 4, 5, 6mm
    • Special thickness as requested
    • Aluminum skin: 0.21-0.50mm
  • PE and PVDF coating
  • Brushed and mirror finish and granite and wooden
  • Fire-proof panel
  • PE Coating: 5 years,
  • PVDF Coating: 10-15 years



Coating

 PE  PVDF/NANO/FEVE

Aluminum Thickness

 Alu 0.21-0.50mm Alu 0.21-0.50mm

Plastic Core

 FR-B1/A2 FR-B1/A2

Front Side / Back Side

 Single / Double Sided Single / Double Sided
Color (Surface treatment)

Solid,Metallic,Glossy,Mirror,

Wooden,Granite,Brush

Solid,Metallic,Glossy,Wooden,

Granite,Brush





ALUDONG Technical data for PVDF Coating:



Description Test standard PVDF
Coating Thickness (μm) Polyester paint >=25μm 26μm
Coating flexibility (T-bend) Polyester paint ≤ 3T ≤ 2T
Color different ΔE<=2.0 (follow color sample) ΔE<=2.0
Pencil hardness >=HB >=2H
Chemical resistance 5%HCI or 5%NaOH test in 48 hours -No change No change
Coating adhesion >=1grade for 10810mm2 gridding test 1grade
Resist solvent 100 times without change No change
Boiling water resistance 2 hours without change No change
Peeling strength/stripping strength Average >=5N/mm of 180oc peel off
for panel with 0.30mm alu.skin		 5N/mm
Impact test for paint 50KG.cm impact-paint no split for panel No split
Abrasion resistance (L/Mil) NIL NIL
Temperature resistance -40ºC to +80ºC temperature without change of color difference and paint peel off , peeling strength average dropprate<=10% Change of glossy only, no paint Peel off
Coefficient of linear Thermal Expansion 100ºC temperature difference 2.4mm/n
Detergent resistance (3%) ASTM D2248 No change
Humidity Resistance ASTM D2247 (3000hrs,100%RH,100°F) No change
Salt spray resistance ASTM B117 (3000hrs,5% salt) No change
Resistance to Staining 600h radiate in 800W/M2 in humidity condition,
glossiness deviation less grade 2,color difference <=4.0		 No change





Country Method ALUDONG B1 ALUDONG  A2
Australia AS 1530-3 No ignition No ignition
EU EN 13501-1 Class B, s1, d0 Class A2, s1, d0
Germany EN 1187(method 1)/DIN 4102-7 Passed Passed
Malaysia BS 476, PART 6&7 Class 0; Class 1 Class 0; Class 1
Singapore EN13501-1 Class B, s1, d0 Class A2, s1, d0
UAE EN 13501-1 - Class A2
ASTM-E-84 Class A -
UK BS 6853 - Meets requirements of LUL limited
combustible-noncombustible
BS 476, Part 6&7 Class 0 -



Part of Work Shop:



4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel 1





Part of Warehouse:



4mm FR Core B1/A2 PVDF Fireproof Aluminum Composite Panel 2
