Recycled PVDF Coated Aluminum Composite Sheet For Facade Cladding

Minimum Order Quantity : 200 SHEETS Packaging Details : WOODEN PACKAGE
Delivery Time : 15-25 DAYS Payment Terms : L/C, T/T
Supply Ability : 600000 SHEETS PER MONTH
Place of Origin: CHINA Brand Name: ALUDONG
Certification: CE, RoHs, ISO, SGS

Detail Information

Surface Treatment: PVDF Coated Usage: Outdoor,curtain Wall And Exterior Decoration
Function: Fireproof,Antibacterial,PE And PVDF Coated ACP Panels Color: Customer's Requirements,Silver
Panel Thickness: 4mm,6mm,5mm Coating: NANO,PVDF Coating
Application: Building Exterior Wall,ROOFING SHEET Aluminum Thickness: 0.04mm-0.5mm
Length: 3050mm,recommend 2440mm,customized Width: 1500mm,1220mm
Standard Size: 1220*2440mm Certification: CE/SGS/ISO9001,SGS,Fireproof,ISO9001
Protective Film: PE Plastic Tape Material: Aluminum Alloy,LDPE(recycled-plastic) No-toxic Or Fire-rated
High Light:

PVDF Coated Aluminum Composite Sheet

,

Facade Cladding ACM Panel

,

Recycled PVDF Aluminum Composite Panel

Product Description

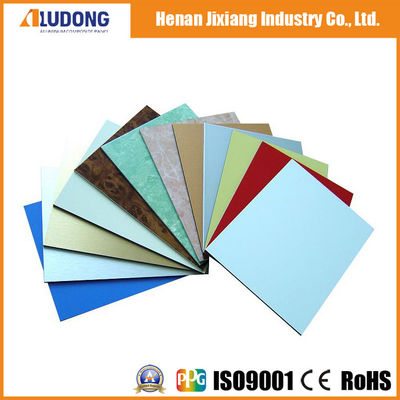

4mm PVDF coating Aluminum Composite Panel Silver and Wooden for outdoor building facade cladding





Item Standard Options
Width 1220mm 1000mm, 1500mm, or range from1000mm-1570mm
Length 2440mm 3050mm, 5000mm, 5800mm, or any
other length that can be put into a 20GP
container
Panel Thickness 3mm, 4mm 2mm, 5mm, 8mm , or range from 1.5mm-8mm
Aluminium Thickness
(mm)
0.5mm,0.4mm, 0.3mm, 0.21mm, 0.15mm, or range from 0.03mm-0.60mm

Surface Finish Brushed, Maple, Mirror , PE, PVDF, FEVE Coating
Color Metallic Color, Gloss Color, Pearl, Mirror, Maple,Brushed, etc
Weight 3-4.5kg/Square meter, based on 3mm panel thickness
4-4.5kg/Square meter, based on 4mm panel thickness
Application Interior / Exterior / signage /industries application
Certification ISO 9001:2000, ISO9001:2008, SGS ,CE,Rohs, Fireproof Certification
Leading Time 8-15 days after receive your orderr
Packing Wooden Pallet or Wooden case or Nude Packing

















































Structural Section of aluminum composite panel

Aluminum Composite Panel is compounded by multilayer materials, the surface and back covered by high strength aluminum alloy sheet, the core material is non-toxic low density polyethylene(PE) , on the surface of aluminum composite panel covered by protective film.

Recycled PVDF Coated Aluminum Composite Sheet For Facade Cladding 0



Characteristic of ACP

  • High Strength

ALUDONG adopt super quality aluminum , high strength , greatly enhance the panel’s strength to ensure the perfect effect in wind load resistance, shakeproof.Superior weather-resistance and ultraviolet (UV) resistance, acid-resistance and alkli-resistance.

  • Environment-friendly :

No pollution to the enviroment , it is green building decorative material, No changes in surface coating .

  • Light weight

ALUDONG aluminum composite panel are composite of aluminum and plastic ,which is lighter than other decorating material.

  • Non inflammable

The non inflammable external aluminum sheets offer protection to polyethylene core material, and cut off heat conduction in the initial stages of combustion, with flame resistance up to international standard.

  • Economy

ALUDONG with the use of quality coating , aluminum composite panels are dispensed with longtime maintenance; because it is self-cleaning, they can be cleaned by neutral cleaning agent and clean water, and come out to be fairly new after cleaned.

  • Design performance

If requested by customer, aluminum -plastic panels can be made to different colors and shapes to meet the original design of architects, thus bring perfect decorating effect.

  • Durability

ALUDONG fluorocarbon coated aluminum composite panels are featured by high durability ,good resistance against weather, high temperature,

wear and pollution.



Recycled PVDF Coated Aluminum Composite Sheet For Facade Cladding 1





ACP Coating Features



  • Polyester coating
  • PE coating has good adhesion to the material. The color coated steel plate is easy to process, cheap, and has many products, and the choice of color and luster is great. In the general environment directly exposed, the corrosion period can be as long as 7 to 8 years.



  • Lacquering
  • ALUDONG surfaces the coating is high-quality lacquering systems , which own good chemical causticity resistance, and abrasion resistance and so on. For externel wall decoration ,use PVDF Coating and FEVE Coating is better choice, because the coating systems have excellent surface durability .which can keep 10-15 years.



  • Nano-coating
  • ALUDONG Nano coating is a special clear lacquering system which has excellent self-cleaning characteristics, the total dry film thickness shall be 35 micron minimum consisting of a conversion coating ,an inhibititive primer, lumiflon-based fluorocarbon and clear coating.



  • Chameleon colors coating
  • With pearl talc in PVDF paint (70% PVDF), the pigment type and viewing angle distinguish it with other coating .The different wave lengths of light reflected ,refracted and diffracted to the audience makes an ever-changing color gradient with iridescent highlights.



  • Nacreous coating
  • Nacreous coating is three-coat three-bake system . The thickness is 35 micron minimum consisting of a conversion coating , an inhibitive primer, lumiflon-based fluorocarbon coating and nacreous coating. The surface glossiness is around 90 degree. It is as excellent choice for the places which highly demand the surface glossiness.



  • Variety of Colors
  • From a wide range of standard colors, customers can select both metallic colors and solid colors. tailor-made colors are available on request.

The gloss for solid and for metallic colors is in the range of 30%-40% according to Gardner Scale which is most suitable for architectdner applications. For special effect colors, the gloss is in the range of 70%-80% according to Gardner Scale. Due to their high gloss, panels coated in special effect colors need special care in the design and during fabrication and installation.

Recycled PVDF Coated Aluminum Composite Sheet For Facade Cladding 2



Application of Aluminum compsite panel



It can be widely used

1. Curtain wall,

2. Internal and external wall,

3. Ceiling,

4. Eaves,

5. Balcony,

6. Gallery,

7. Exhibitions,

8. Partitions,

9. Advertise fascia,

10. Showing and display platform.



Recycled PVDF Coated Aluminum Composite Sheet For Facade Cladding 3
