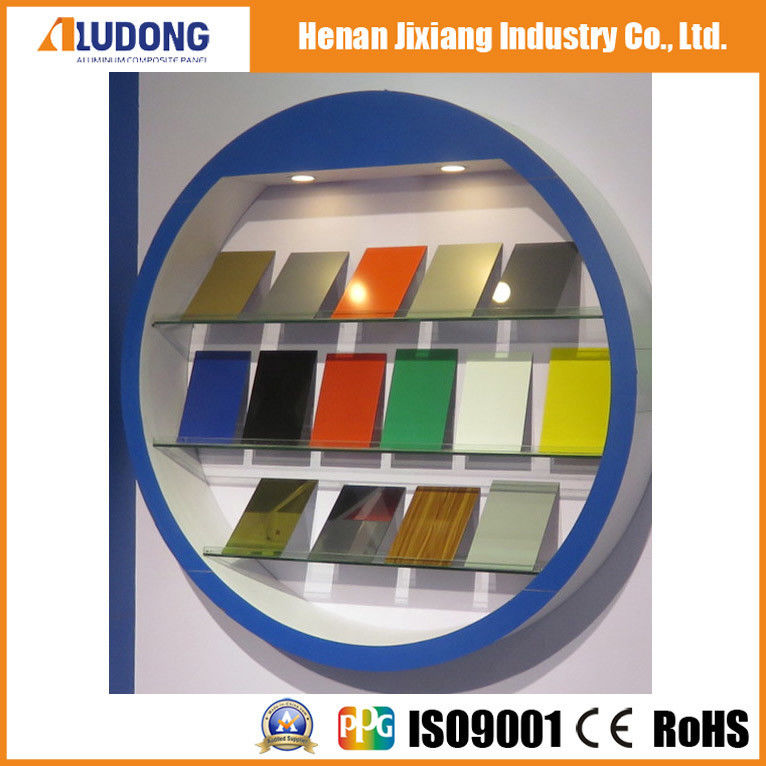

High Gloss Aluminum Composite Panel The Ultimate Building Material for Modern Design and Performance
Contact Person : admin
Phone Number : 13699225355
Minimum Order Quantity : | 600SQM | Price : | 3-18 USD/SQM |
---|---|---|---|
Packaging Details : | nude packing or wooden pallets | Delivery Time : | 10-15 days |
Payment Terms : | L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash | Supply Ability : | 1000000 per month |
Place of Origin: | China | Brand Name: | ALUDONG |
---|---|---|---|
Certification: | CE, ASTM, ISO, Green Leaf | Model Number: | 1100 |
Detail Information |
|||
Model NO.: | 1100 | Trademark: | Audong ZWM |
---|---|---|---|
Transport Package: | Pallet | Specification: | 1220mm*2440mm |
Origin: | Zhengzhou Henan | HS Code: | 76061251 |
Port: | Qingdao, China | Production Capacity: | 8500000pieces/Per Year |
Surface Finishing: | Coating | Panel Thickness: | 3mm |
Aluminum Thickness: | 0.3mm | Function: | Fireproofing, Anti-static, Anti-Bacterial, Mould-proof |
Usage: | Signage,Cladding,Printing | Certification: | CE, ASTM, ISO, Green Leaf |
Highlight: | Cladding Aluminum Composite Panel,ASTM Cladding Aluminum Composite Panel,Bookstalls Cladding Aluminum Composite Panel |
Product Description
1 | Protective film | with ZWM/Aludong trademark or as your request |
2 | Coating | PE coating or PVDF coating |
3 | Aluminum skin | 0.03-0.6mm |
4 | Core material | PE Core |
5 | Rear side | Aluminum coating with primer or as requested |
items | standard | Test value |
Surface density | Rating±0.5kg/m2 | 6.8kg/m2 |
Impact strength | 50kg*cm no paint peeling or cracking | None |
Bend strength | ≥100Mpa | ≥104Mpa |
Flexuous modulus | ≥2.00*104Mpa | 3.00*104Mpa |
Through resistance | ≥9.0KN | ≥9.5KN |
Cutting strength | ≥28.0Mpa | 29.0Mpa |
1800peel strength | ≥7.0N/MM | 9.1N/MM |
Resistance to temperature changes | -400C~-800C 20times no change | No change |
