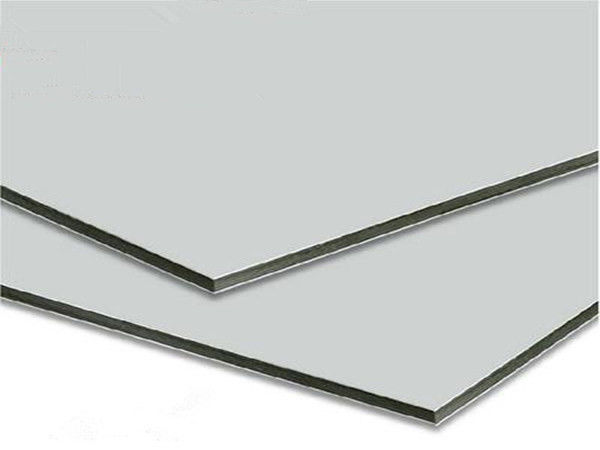

ASTM 5000mm AA3003 UV Printable Aluminum Composite Panel

Minimum Order Quantity : 600SQM Price : Negotiatable
Packaging Details : nude packing or wooden pallets Delivery Time : 10-15 days
Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash Supply Ability : 1000000 per month
Place of Origin: China Brand Name: ALUDONG
Certification: CE, ASTM, ISO, Green Leaf

Detail Information

Model NO.: 1220mm*2440mm; 1220mm*3050mm; 1500mm*3660mm No Pollution: Environmental Protection Material
Recycle: Recyclable Trademark: ALUDONG
Transport Package: Wood Pallet Or In Nude Specification: 2mm*0.1mm*0.1mm; 3mm*0.2mm*0.2mm; 4mm*0.3mm*0.3mm
Origin: China Zhengzhou HS Code: 76061251
Port: Qingdao, China Production Capacity: 7200000pieces/Year
Surface Finishing: Coating Panel Thickness: 3mm
Aluminum Thickness: 0.2mm Function: Fireproofing, Anti-static, Anti-Bacterial
Usage: External Wall, Curtain Wall, Interior, Advertising Certification: CE, ASTM, ISO, Green Leaf
High Light:

AA3003 UV Printable Aluminum Composite Panel

,

5000mm Printable Aluminum Composite Panel

,

ASTM Printable Aluminum Composite Panel

Product Description

Aludong Various Colors Aluminum Composite Panel for Different Use

Product Description

Customer Question & Answer

Ask something for more details

Key Specifications/Special Features:

PVDF (fluorine-carbon) Coating (Traditional PVDF)
Made of fluorine carbon resin, pigment, ester solvent, after high temperature roasting and baking, the paint is solidified to dry film with super resistance.

Traditional PVDF coating with KYNAR500 PVDF, two or three times for coating and baking has good properties of anti-acid, anti-alkali and is durable in atrocious weather and environment.
Weather resistance guarantee: keeping 15-20 years no unwonted fading.
Application: we recommend this panel applied for external wall cladding.

Key Specifications/Special Features:
ALUDONG® Signage high gloss finish aluminum composite panel is an integrated work consisting of various machining procedures, assembling and inspection.
More details please download ALUDONG processing guidelines.

1. Specifications
Standard size: 1220mmx2440mm
Length: 1000mm, 1220mm, 2440mm, 3000mm, 4000mm, 5000mm.
Width: 1220mm, 1250mm, 1500mm
overall thickness: 2mm, 2.2mm, 2.5mm, 2.8mm, 2.9mm, 3.0mm, 3.8mm, 4.0mm, 5mm
aluminum plate/sheet thickness:0.04mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.21mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm

Colors and other size can be done as your request.

2. Material
 1) Top: aluminum alloy (AA3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting.
 2) Core: non-toxic polyethylene or fireproof material (B1).
 3) Back: aluminium alloy sheet coated with polyester resin painting.
 4) Surface finish: PVDF / PE coated, brushed finish, mirror finish, wooden texture, marble texture, Nano painting etc.
 5) Surface coating thickness: 25~30 μm 70% KYNAR 500 PVDF or PE.

3. Advantages
 1) Super weather resistance
 2) Light weight easy to proceed
 3) Excellent fire resistance
 4) Excellent impact strength
 5) Uniform and colorful coating
 6) No pollution to the environment.
 7) Display of the design.
 8) Easy maintenance...and so on

4.Certification
 GB/T17748-1999 standard and ISO9001, ISO14001, CE, UL, SGS Certificate
Paint thickness (micron)  20
Pencil hardness  >HB
Toughness of coating   3T
Temperature resistance  -50˚C to +90˚C
Boiling Water resistance  Boiling for 2hrs without change
Acid resistance   Immerse surface in 2% HC1 for 24hrs without change
Alkali resistance   Immersed surface in 2% NaOH for 24hrs without change
Oil resistance  Immerse surface in 20# engine oil for 24hrs without change
Solvent resistance   Cleaned 100 times with Dimethylbenzene without change
 Cleaning resistance   >1000 times without change
 Peel strength 180˚  >5 Newton/mm
