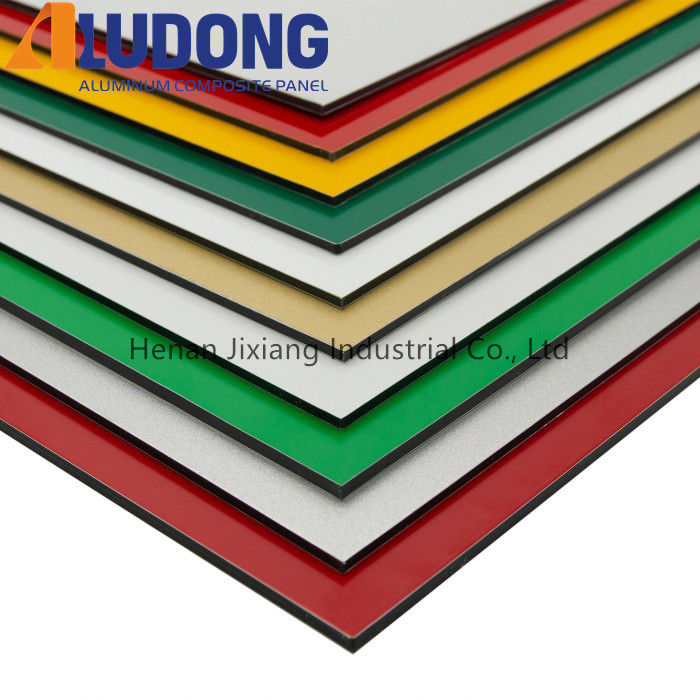

1250mm*3050mm PE Aluminum Composite Panel

Product Details:
Place of Origin: China
Brand Name: ALUDONG
Certification: CE, ASTM, ISO, Green Leaf
Model Number: 1100
Payment & Shipping Terms:
Minimum Order Quantity: 600SQM
Price: 3-18 USD/SQM
Packaging Details: nude packing or wooden pallets
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash
Supply Ability: 1000000 per month

Detail Information

Transport Package: Wood Pallet; Wood Box; In Nude Specification: 1220mm*2440mm; 1250mm*3050mm
Port: Qingdao, China Panel Thickness: 3mm
Aluminum Thickness: 0.2mm Function: Fireproofing, Anti-static, Anti-Bacterial, Mould-proof
Usage: External Wall, Curtain Wall, Interior, Advertising
High Light:

1250mm*3050mm PE Aluminum Composite Panel


3mm Aluminum Composite Panel

Product Description

Product range:

Surface Coating Polyester Coating
Aluminum Alloy AA1100,  AA3003
Aluminum Skin 0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.30mm
Panel Thickness 2mm,3mm,4mm,5mm
Core Material Non-toxic low density polyethylene
Panel Width 1000mm,1220mm,1250mm,1500,
Panel Length 2440mm,3050mm,4000mm,5000mm
Back  Coat PE coating, Primer Coating ,Mill finish
Products tolerance:
Panel Width ±2mm
Panel Length ±3mm
Panel Thickness ±0.2mm
Panel Diagonal ≤ 5mm
Aluminum layer thickness ±0.02mm
Technical data:
Description  Test standard  Polyester
Coating Thickness (μm) Polyester paint >=16μm 16μm to 18μm
Coating flexibility (T-bend) Polyester paint ≤ 3T ≤ 3T
Color different  ΔE<=2.0 (follow color sample) ΔE<=2.0
Pencil hardness >=HB >=2H
Chemical resistance  2%HCI or 2%NaOH test in 24 hours -No change  No change
Coating adhesion >=1grade for 10810mm2 gridding test 1grade
Resist solvent  100 times without change No change
Boiling water resistance  2 hours without change  No change
Peeling strength/stripping strength  Average >=5N/mm of 180oc peel off
 for panel with 0.21mm
Impact test for paint impact-paint no split for panel  No split
Abrasion resistance (L/Mil) NIL NIL
Temperature resistance  -40ºC to +80ºC temperature without
change of color difference
 and paint peel off, peeling
strength average dropprate<=10%
Change of glossy only, no paint
Peel off
Coefficient of linear Thermal Expansion 100ºC temperature difference  2.4mm/n
Detergent resistance (3%) ASTM D2248 No change
Humidity Resistance (3000hrs,100%RH,100°F) ASTM D2247 No change
Salt spray resistance (3000hrs,5% salt) ASTM B117 No change
Resistance to Staining  600h radiate in 800W/M2 in humidity condition
,glossiness deviation less grade 2,color difference <=4.0
No change
