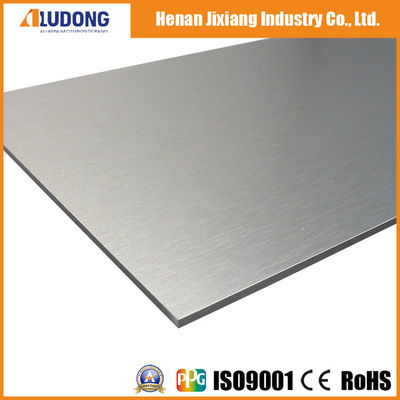

Non Toxic Polyester Coating Mill Finish 2mm PE ACP

Minimum Order Quantity : 600SQM Price : 3-18 USD/SQM
Packaging Details : nude packing or wooden pallets Delivery Time : 10-15 days
Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash Supply Ability : 1000000 per month
Place of Origin: China Brand Name: ALUDONG
Certification: CE, ASTM, ISO, Green Leaf

Detail Information

Model NO.: ZWM-8802 Trademark: ALUDONG
Transport Package: Wood Pallet; Wood Box; In Nude Specification: 3mm*0.15mm*0.15mm; 3mm*0.18mm*0.18mm
Origin: China Zhengzhou HS Code: 76061251
Port: Qingdao, China Production Capacity: 24000pieces/Day
Surface Finishing: Coating Panel Thickness: 4mm
Aluminum Thickness: 0.3mm Function: Fireproofing, Anti-static, Anti-Bacterial, Mould-proof
Usage: External Wall, Curtain Wall, Interior, Advertising Certification: CE, ASTM, ISO, Green Leaf
High Light:

Mill Finish 2mm PE ACP

,

Polyester Coating 2mm PE ACP

,

Non Toxic 2mm PE ACP

Product Description

Exterior Curtain Cladding Aluminum Composite Panel-Zwm-8802

Product Description

Customer Question & Answer

Ask something for more details
Company Information:
Henan Jixiang Industry Co., Ltd is located in Zhengzhou City,Henan Province.
It is a professional company manufacturing high and new-tech aluminum composite products,which is one of the earliest manufacturers of aluminum composite in China.
Our company possesses 24 production lines and 6 coating lines for aluminum composite panels whose annual output is 5.8million square meters.
In addition, our company has passed ISO9001 International Quality Management System Certification, ISO14000 Environment Management System Certification, OHSAS18000 Occupation Health Safety Management System Certification, and CTC Product Quality Certification, and won several national patents.

Product information:
Aluminum composite panel is made of aluminum alloy and plastic material to feature great hardness, light weight and smooth service, provided with wide range of sizes, shapes, colors, and styles to offer broader options for construction design, in a bid to better meet the requirements of contemporary construction on lightweight, elegant decoration and high hardness
Aluminum composite panel is widely used in all kinds of architectural decorations for its excellent properties, such as the, cladding, shops front, ceiling, counters, furniture, road signs, billboards, kiosks, elevators, stores.
Exterior Curtain Cladding Aluminum Composite Panel-Zwm-8802

 Product range:

Surface Coating Polyester Coating
Aluminum Alloy AA1100,  AA3003
Aluminum Skin 0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.30mm
Panel Thickness 2mm,3mm,4mm,5mm
Core Material Non-toxic low density polyethylene
Panel Width 1000mm,1220mm,1250mm,1500,
Panel Length 2440mm,3050mm,4000mm,5000mm
Back  Coat PE coating, Primer Coating ,Mill finish

Products tolerance:

Panel Width ±2mm
Panel Length ±3mm
Panel Thickness ±0.2mm
Panel Diagonal ≤ 5mm
Aluminum layer thickness ±0.02mm

Technical data:

Description  Test standard  Polyester
Coating Thickness (μm) Polyester paint >=16μm 16μm to 18μm
Coating flexibility (T-bend) Polyester paint ≤ 3T ≤ 3T
Color different  ΔE<=2.0 (follow color sample) ΔE<=2.0
Pencil hardness >=HB >=2H
Chemical resistance  2%HCI or 2%NaOH test in 24 hours -No change  No change
Coating adhesion >=1grade for 10810mm2 gridding test 1grade
Resist solvent  100 times without change No change
Boiling water resistance  2 hours without change  No change
Peeling strength/stripping strength  Average >=5N/mm of 180oc peel off
 for panel with 0.21mm alu.skin
5N/mm
Impact test for paint  20KG.cm impact-paint no split for panel  No split
Abrasion resistance (L/Mil) NIL NIL
Temperature resistance  -40ºC to +80ºC temperature without
change of color difference
 and paint peel off, peeling
strength average dropprate<=10%
Change of glossy only, no paint
Peel off
Coefficient of linear Thermal Expansion 100ºC temperature difference  2.4mm/n
Detergent resistance (3%) ASTM D2248 No change
Humidity Resistance (3000hrs,100%RH,100°F) ASTM D2247 No change
Salt spray resistance (3000hrs,5% salt) ASTM B117 No change
Resistance to Staining  600h radiate in 800W/M2 in humidity condition
,glossiness deviation less grade 2,color difference <=4.0
No change
Qurality certificate:
Exterior Curtain Cladding Aluminum Composite Panel-Zwm-8802


Exhibition &Customer:
Exterior Curtain Cladding Aluminum Composite Panel-Zwm-8802


Our products are accepted by markets widely with good performances and brand image, which are sold around China and in more than 20 countries and regions, such as Southeast Asia, Africa, Australia,  America, and Brazil.

Why choose us:

  • Scale : 24 advanced composite production lines and 6 aluminum coil coating lines
  • Quality: strictly comply with international standards and passed ISO,SGS,CE,Rohs certificate etc.
  • Experience : Founded in 1999, rich production experiences in aluminum composite panel and well-known brand in China market.
  • Lead Time: Absolute scale and experiences advantages ensure a quality guaranteed order fast delivered to our customers.
  • Superior ability of OEM Service.
  • Multiple specs and colors for your choices, and customized color acceptable.
