Name: 4mm PVDF Aluminum Composite Panel for exterior facade,building cladding
Brand: Henan Jixiang Industrial Co., Ltd
SKU: ALD-8801
Price: 3 USD
Availability: InStock

Home > Products > PVDF Aluminum Composite Panel >

4mm PVDF Aluminum Composite Panel for exterior facade,building cladding

4mm PVDF aluminum composite panel

PVDF aluminum facade cladding panel

exterior building cladding panel

Place of Origin:

CHINA

Brand Name:

ALUDONG

Certification:

CE，SGS，ISO

Model Number:

ALD-8801

Request A Quote

Product Details

Surface Treatment:

PVDF Coated

Usage:

Outdoor,curtain Wall And Exterior Decoration,exterior

Function:

Mould-Proof,Anti-Static,PE And PVDF Coated ACP Panels

Color:

Customer's Requirements,Customs' Color Is Available

Panel Thickness:

2/3/4/5/6mm

Size:

1220*2440mm

Coating:

PE PVDF,NANO,PVDF Coating

Application:

Decorative Material,Building Exterior Wall,wall Cladding For Exterior

Aluminum Thickness:

0.50/0.5mm,0.30/0.30mm

Product Name:

Aluminnum Composite Panel,PVDF/PE Coated Alucobond Price/Exterior Wall Aluminum Composite Panels,pvdf Acp 4mm Aluminium Composite Panel Price

Length:

Customized,6000mm In Maximum

Width:

1220mm/1250mm/1500mm/1550mm

Thickness:

4mm

Standard Size:

1220*2440mm

Certification:

CE/SGS/ISO9001,SGS,Fireproof,ISO9001

Protective Film:

1 Side Or 2 Sides

Core:

Good Core,unbroken PE,Half Unbreakable,LDPE / Fireproof / A2 Non-combustible

Name:

Aluminum Composite Board/Pvdf Aluminium Composite Panel

Material:

Aluminum Alloy,LDPE(recycled-plastic) No-toxic Or Fire-rated

Highlight:

4mm PVDF aluminum composite panel

PVDF aluminum facade cladding panel

exterior building cladding panel

Payment & Shipping Terms

Minimum Order Quantity

600SQM

Price

3 USD/SQM

Packaging Details

Nude Packing or Wooden Pallets

Delivery Time

10-15 days

Payment Terms

T/T,L/C

Supply Ability

1000000 Sheets Per Month

2440mm ACM Wall Panel Easy Maintenance Sound Insulation Excellent

Get Best Price

Video

Alucobond PVDF Aluminum Composite Panel with Unbreakable Core and Glossy Surface Finish

Get Best Price

Video

Pvdf Architectural Composite Panels

Get Best Price

Video

Modern 2mm-6mm Waterproof Alucbond Aluminum Composite Panel For Curtain Wall Eaves Indoor Shelter

Get Best Price

86-15238626739

jasonlee@henanjixiang.com

86-371-60292098

Contact Now

Product Description

Company Profile

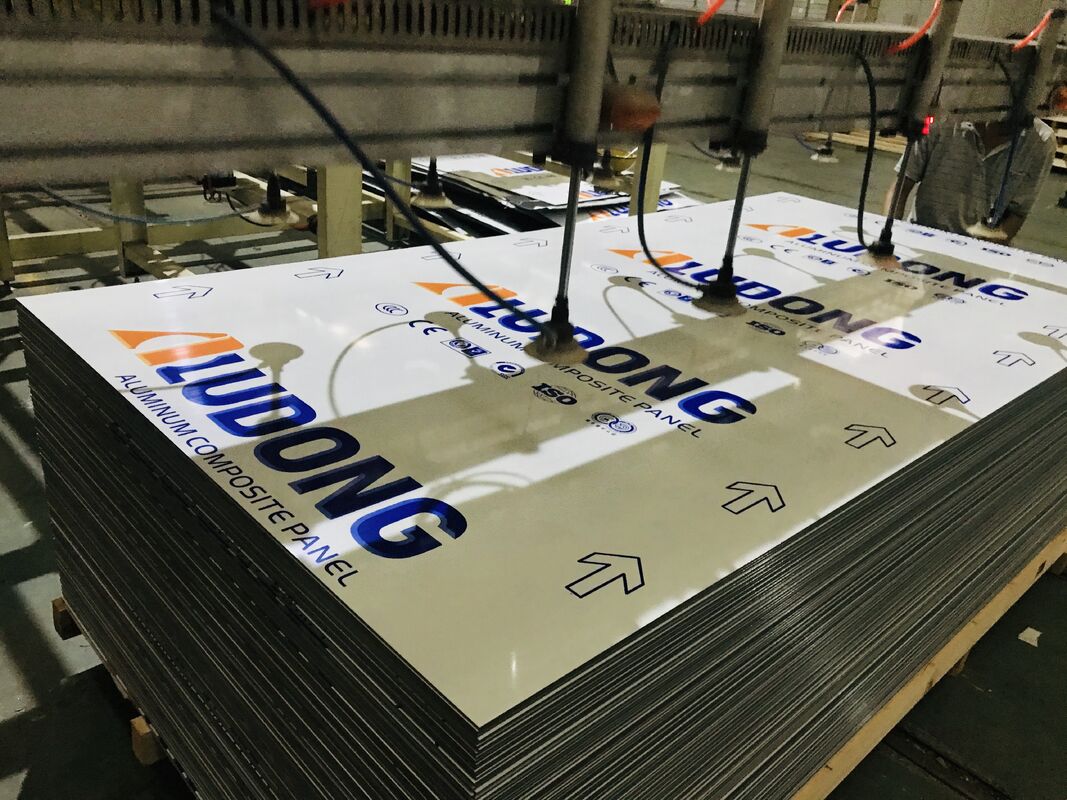

4mm PVDF Aluminum Composite Panel for exterior facade,building cladding 0

HENAN JIXIANG INDUSTRY CO.,LTD is a leading Chinese manufacturer of aluminum and composite materials with over 20 years of expertise. Certified with ISO 9001, CE, and SGS, we export to 100+ countries, offering reliable materials by R&D innovation and strict quality control.

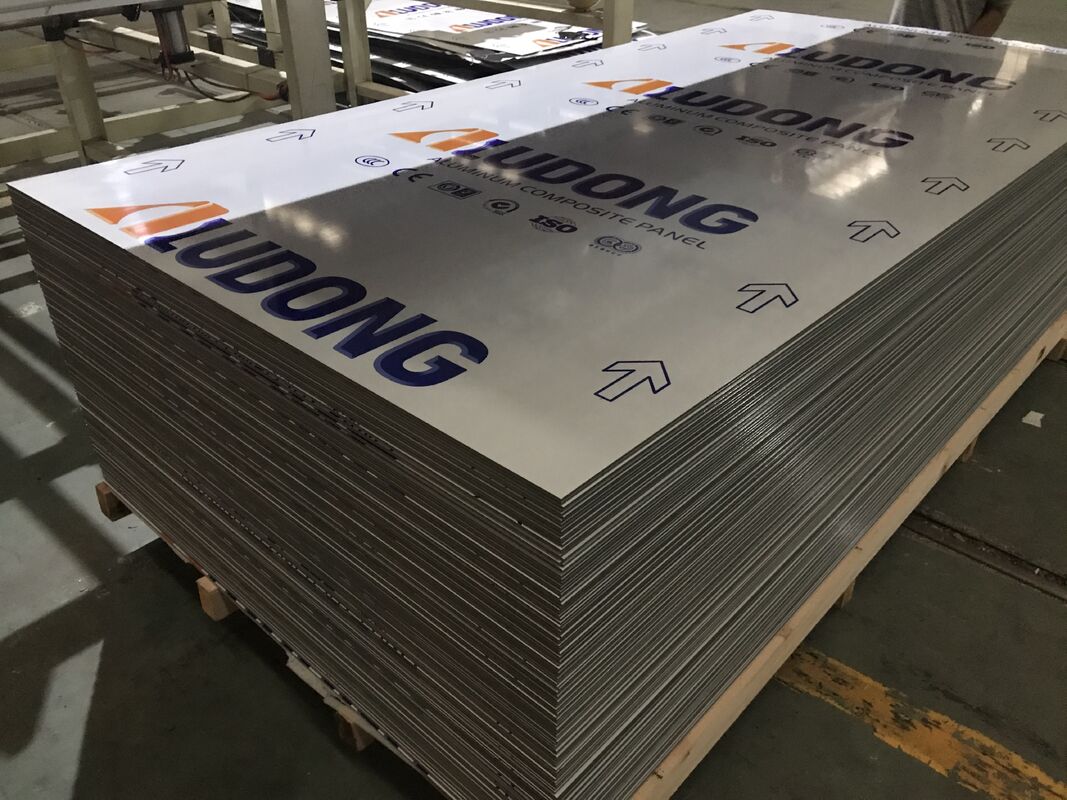

4mm PVDF Aluminum Composite Panel for exterior facade,building cladding 1

Henan Jixiang Industry Co., Ltd; Henan Aludong Decorative Materials Co.,Ltd is located in Zhengzhou City,Henan Province, Which a professional enterprise manufacturing high and new-tech aluminum composite products,which is one of the earliest and scaled manufacturers of aluminum composite, coated aluminum coils, aluminum solid panel in China.Our company possesses16 production lines and 6 coating lines for aluminum composite panels whose annual output is 5800000 square meters.In addition, our company has passed ISO9001 International Quality Management System Certification, ISO14000 Environment Management System Certification, OHSAS18000 Occupation Health Safety Management System Certification, and CTC Product Quality Certification, and won several national patents.

Specification

DIMENSIONAL STANDARD:

Standard Size: 1220*2440mm

Optional width: 1000/1020/1050/1250/1500/1550/1570mm

Optinal lenghth: as requests

Standard Thickness: 3/4mm

Optinal Thickness: 2/2.5/5/6/7/8mm

Dimensional Tolerance:

Panel width: +-2mm

Panel length: +-3mm

Panel thickness: +-0.2mm

Panel diagonal: <5mm

Aluminum sheet thickness: +-0.02mm

ALUDONG ACP APPLICATION:

•Outdoor advertising

•Signage
•Store Poster
•Supermarket poster
•Decorative mural painting
•Exhibition
•Partition
•Outdoor signage - Company sign boards, small pylons,wall advertising •board
•Exhibition stands / wall panels / ceiling construction
•POS applications
•Retail interior furnishings
•Digital Printing
•The product colour could be changed by vinyl application / spray paint

SOLID & METALLIC

WOODEN & MARBLE

BRUSHED

ALUDONG ACP Characteristics

Products features:

•Light weight

•Excellent curve and bend strength
•Choice of rich colors and finishes
•Flat surface and consistent colors
•Easy processing and installation
•Fine impact resistance
•Exceptional weather resistance
•Easy maintenance
•Fire reistanct
•Printable surface as sign materials

•Customized size avaliable

Specifications(Custom configurations available upon request.)

WIDTH	PE	PVDF	ANODIZED MIRROR
1000-1220mm	0.05-0.50mm	0.21-0.50mm	0.30-0.50
1500-1570mm	0.15-0.50mm	0.21-0.50mm	/

ALUDONG PVDF ALUMINUM COMPOSITE PANEL TECHNICAL DATA

Description	Test standard	PVDF
Coating Thickness (μm)	Polyester paint >=25μm	26μm
Coating flexibility (T-bend)	Polyester paint ≤ 3T	≤ 2T
Color different	ΔE<=2.0 (follow color sample)	ΔE<=2.0
Pencil hardness	>=HB	>=2H
Chemical resistance	5%HCI or 5%NaOH test in 48 hours -No change	No change
Coating adhesion	>=1grade for 10810mm2 gridding test	1grade
Resist solvent	100 times without change	No change
Boiling water resistance	2 hours without change	No change
Peeling strength/stripping strength	Average >=5N/mm of 180oc peel off for panel with 0.30mm alu.skin	5N/mm
Impact test for paint	50KG.cm impact-paint no split for panel	No split
Abrasion resistance (L/Mi)	NIL	NIL
Temperature resistance	-40ºC to +80ºC temperature without change of color differenceand paint peel off , peeling strength average dropprate<=10%	Change of glossy only, no paint Peel off
Coefficient of linear Thermal Expansion	100ºC temperature difference	2.4mm/n
Detergent resistance (3%)	ASTM D2248	No change
Humidity Resistance	ASTM D2247 (3000hrs,100%RH,100°F)	No change
Salt spray resistance	ASTM B117 (3000hrs,5% salt)	No change
Resistance to Staining	600h radiate in 800W/M2 in humidity condition,glossiness deviation less grade 2,color difference <=4.0	No change

After Sales Service

Standard Warranty: 10 days for outter looks after upload goods, 6 months for inner quality

Extended Warranty: Optional coverage up to 24 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation/maintenance training.

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support

Project solutions

Large Produdction capacity

ZWM brand / ALUDONG brand

Aluminum Honeycomb Panel

Stainless Steel Composite Panel

Coated Aluminum Coils

Solid Aluminum Panel

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–20days; customized units require 20–25days.

Q: Do you have waranty for the materials?
A: Yes, PE coat: 3-5 years; PVDF: 10-15 years for exterior.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.

Q: Can I request a customized size and brand?
A: Absolutely! We offer customized size and branded service.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
