Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | ALUDONG |
Certification: | CE, ASTM, ISO, Green Leaf |
Model Number: | 1100 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 600SQM |
Price: | 3-18 USD/SQM |
Packaging Details: | nude packing or wooden pallets |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, T/T, D/P, Western Union, Paypal, Money Gram, Cash |
Supply Ability: | 1000000 per month |
Detail Information |
|||
Trademark: | Audong ZWM | Specification: | 1220mm*2440mm |
---|---|---|---|
Surface Finishing: | Coating | Panel Thickness: | 4mm |
Aluminum Thickness: | 0.4mm | Function: | Fireproofing, Anti-static, Anti-Bacterial, Mould-proof |
Usage: | External Wall, Curtain Wall, Interior, Advertising | ||

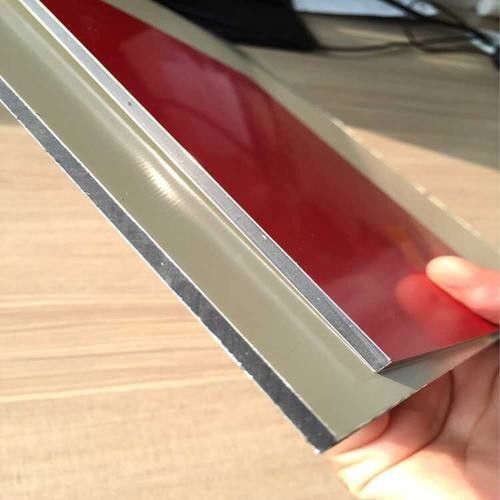

High Light: | 1250mm*3050mm PE Aluminum Composite Panel,Non Flammable 4mm ACM Panel |
Product Description
1 | Protective film | with ZWM/Aludong trademark or as your request |
2 | Coating | PE coating or PVDF coating |
3 | Aluminum skin | 0.03-0.6mm |
4 | Core material | PE Core |
5 | Rear side | Aluminum coating with primer or as requested |
items | standard | Test value |
Surface density | Rating±0.5kg/m2 | 6.8kg/m2 |
Impact strength | 50kg*cm no paint peeling or cracking | None |
Bend strength | ≥100Mpa | ≥104Mpa |
Flexuous modulus | ≥2.00*104Mpa | 3.00*104Mpa |
Through resistance | ≥9.0KN | ≥9.5KN |
Cutting strength | ≥28.0Mpa | 29.0Mpa |
1800peel strength | ≥7.0N/MM | 9.1N/MM |
Resistance to temperature changes | -400C~-800C 20times no change | No change |
